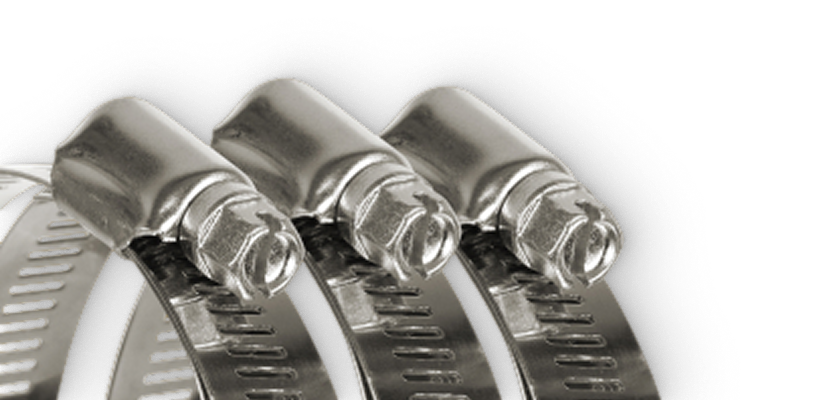

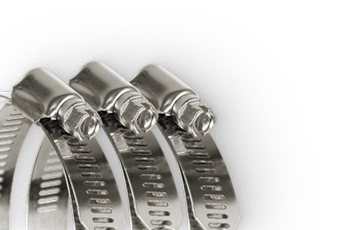

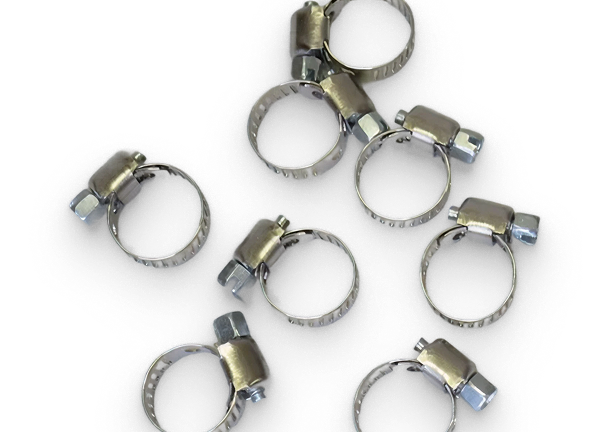

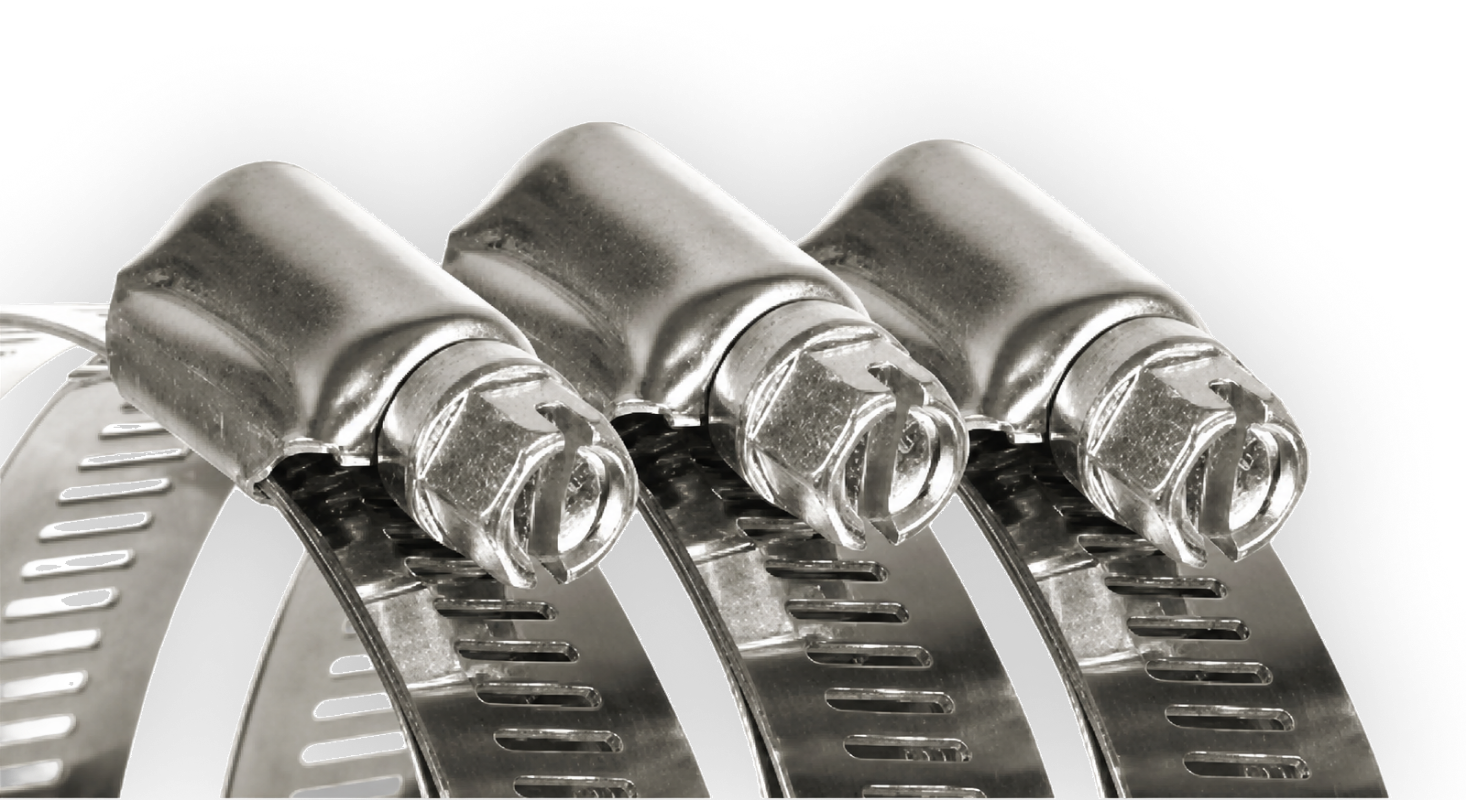

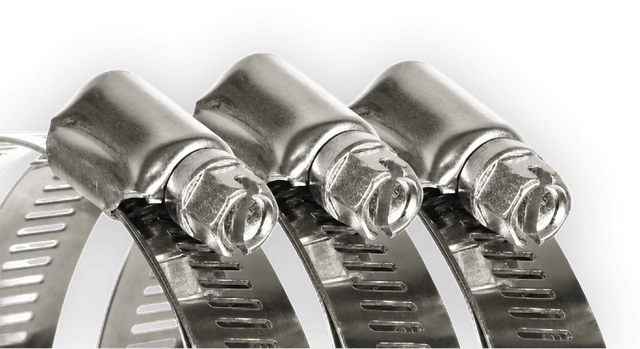

HOSE CLAMPS

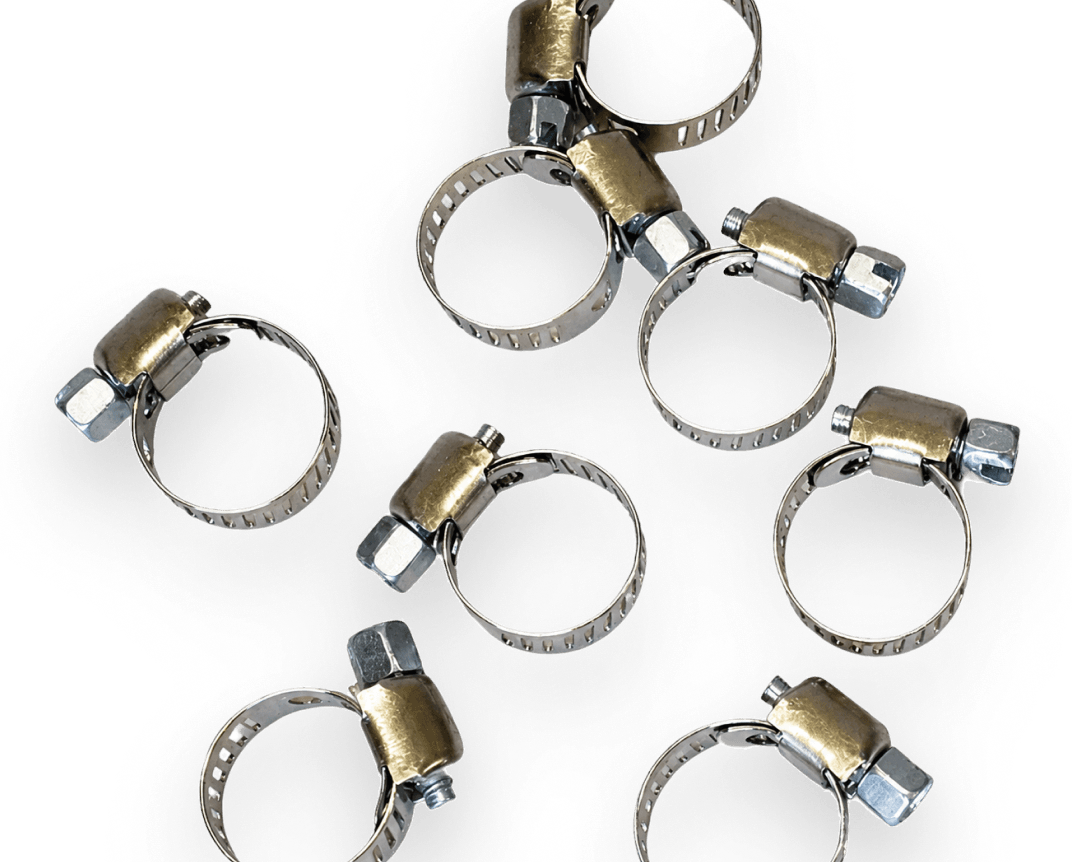

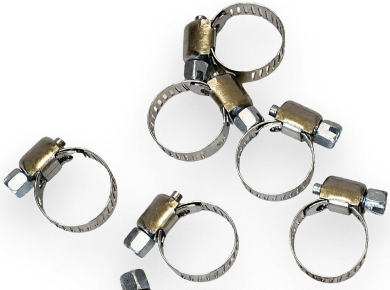

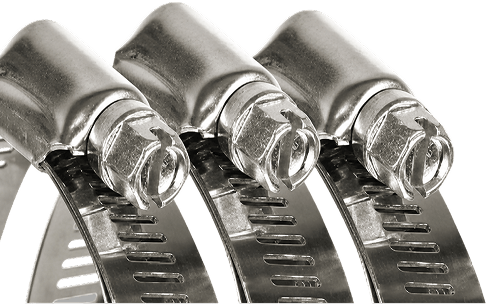

Premium Guard automotive and general use hose clamps feature a Stainless Steel band, and housing, and offer high torque performance. The hex head offers quick and easy fastening with our FLX Driver. Our hose clamps are packaged 10 pieces to box and 10 boxes to a case.

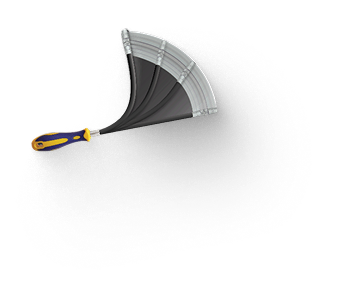

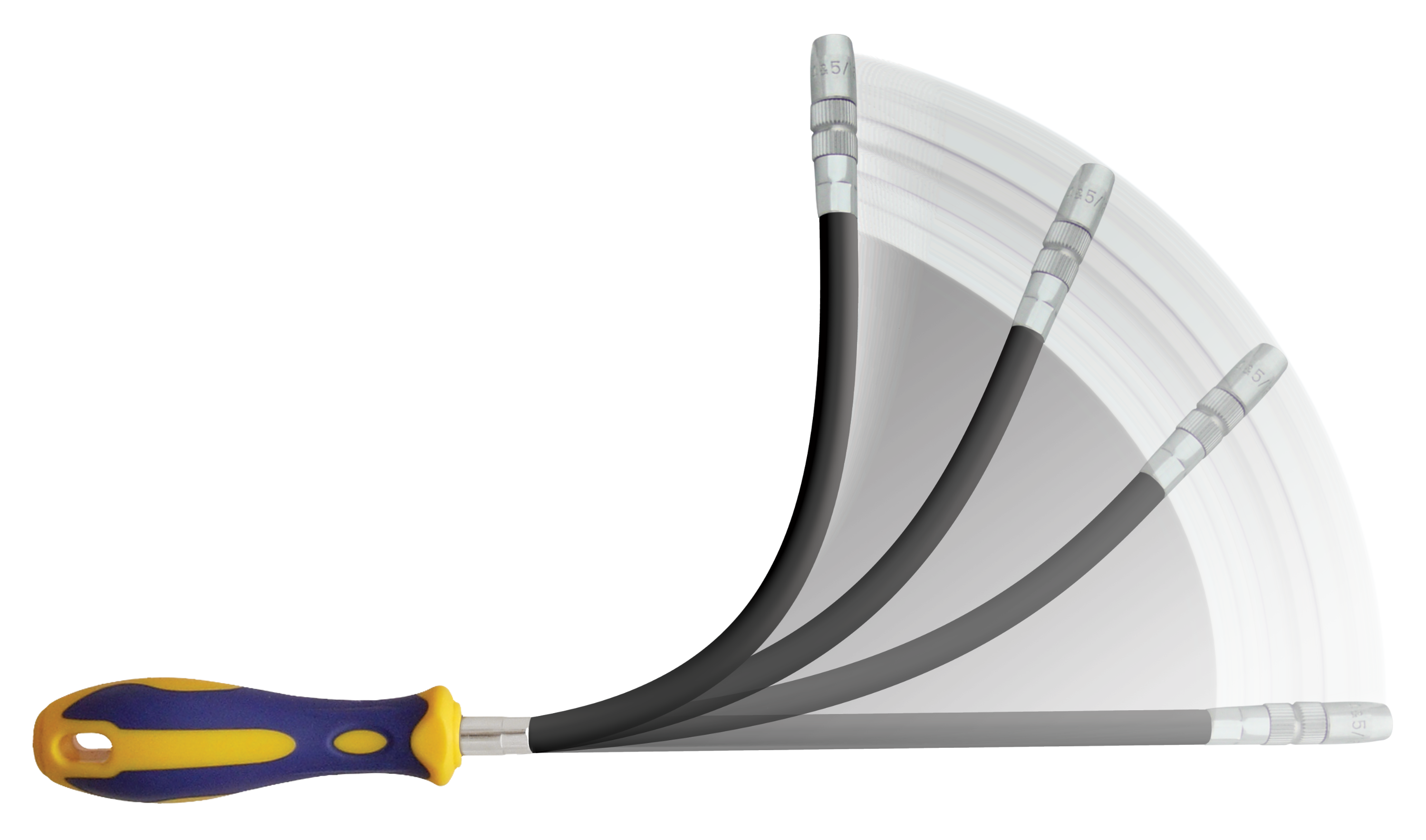

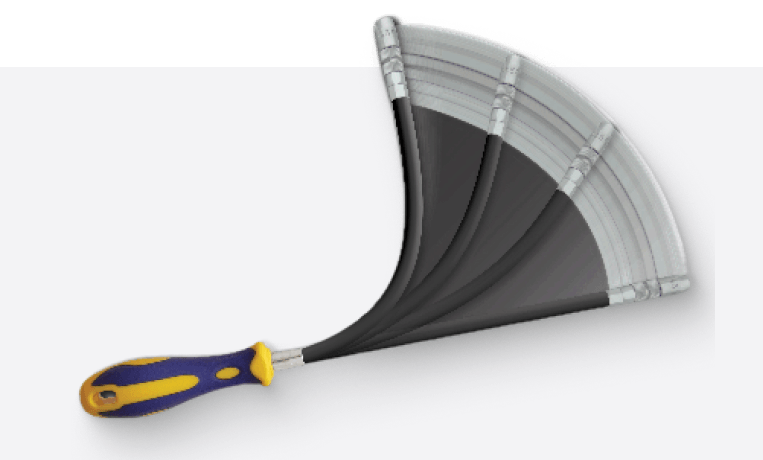

Premium Guard’s FLX FLEXIBLE DRIVER
This is ideal for use in both automotive and industrial applications . It provides superior flexibility when working in tight , hard to reach places . Reversible socket to fit mini and standard hose clamp screw head sizes : 1/4″ ( 6.35mm ) & 5/16″ ( 7.94mm ) . The FLX driver offers
flexible , 90 ° access .
HOSE CLAMPS
| PG # | SAE Sizes | Min. Dam. (in.) | Max. Diam. (in.) | Band & Screw |
|---|---|---|---|---|
| MC4 | Mini 4 | 5/16 | 5/8 | 8mm Band Hex Head |
| MC6 | Mini 6 | 5/16 | 7/8 | 8mm Band Hex Head |
| HC8 | 8 | 7/16 | 1 | 1/2" Band Hex Head |
| HC10 | 10 | 1/2 | 11/16 | 1/2" Band Hex Head |
| HC12 | 12 | 1/2 | 11/4 | 1/2" Band Hex Head |
| HC16 | 16 | 11/16 | 11/2 | 1/2" Band Hex Head |
| HC20 | 20 | 3/4 | 13/4 | 1/2" Band Hex Head |
| HC24 | 24 | 1 | 2 | 1/2" Band Hex Head |
| HC28 | 28 | 11/4 | 21/4 | 1/2" Band Hex Head |
| HC32 | 32 | 11/2 | 21/2 | 1/2" Band Hex Head |
| HC36 | 36 | 13/4 | 23/4 | 1/2" Band Hex Head |
| MC40 | 40 | 2 | 3 | 1/2" Band Hex Head |
| MC44 | 44 | 21/4 | 31/4 | 1/2" Band Hex Head |
| MC48 | 48 | 21/2 | 31/2 | 1/2" Band Hex Head |
| MC52 | 52 | 23/4 | 33/4 | 1/2" Band Hex Head |
| MC56 | 56 | 31/16 | 4 | 1/2" Band Hex Head |
| MC64 | 64 | 31/2 | 41/2 | 1/2" Band Hex Head |
| MC72 | 72 | 31/16 | 5 | 1/2" Band Hex Head |
| MC88 | 88 | 4 | 6 | 1/2" Band Hex Head |
| MC96 | 96 | 51/2 | 61/2 | 9/16" Band Hex Head |
| MC104 | 104 | 63/16 | 7 | 9/16" Band Hex Head |
| MC152 | 152 | 87/8 | 10 | 9/16" Band Hex Head |
| FC4 | Fuel 14 | 7/16 | 1/2 | 9mm Band Hex Head |
| FC6 | Fuel 15 | 1/2 | 9/16 | 9mm Band Hex Head |
| FC8 | Fuel 18 | 9/16 | 5/8 | 9mm Band Hex Head |
Displays & Tools
| Displays & Tools | Description |
|---|---|

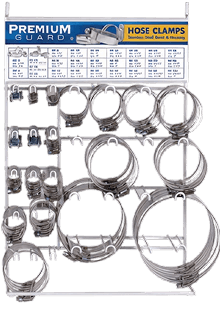

| 9910 | Steel Display Rack for Counter or Wall |
| 9911 | Plastic Display Rack |
| 9999 | 90° Flexible Hose Clamp Driver with Reversible Socket |
| 8888 | FLX Socket Replacement – 3 pieces per pack |
